XRS1-1600 Piezo Shutter

Data Sheet

<table><tbody><tr><th>Quantity</th><th>Unit Price</th></tr><tr><td>1</td><td>$7990</td></tr></tbody></table>

Matched Driver -  VF-500-XRS, $4900/Qty1

Need custom specs or shipping outside the continental United States?  Contact us now for a quote.

Request Quote

Thank you! Your submission has been received!
Oops! Something went wrong while submitting the form.
Need custom specs? Contact us now for a quote.

<table><tbody><tr><th>Quantity</th><th>Unit Price</th></tr><tr><td>1</td><td>$7990</td></tr></tbody></table>

Matched Driver -  VF-500-XRS, $4900/Qty1

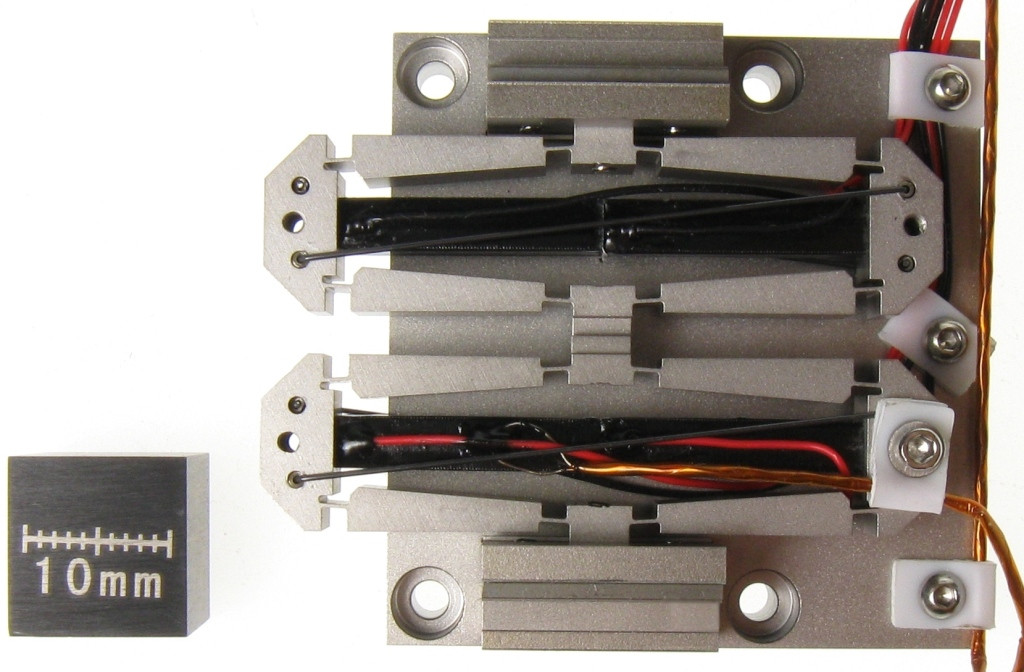

The XRS1-1600 is a shutter assembly that can be used to rapidly change between open and closed condition, making it suitable for controlling exposure of samples to FELs and other beamlines. The shutter assembly is made using two opposed piezoelectric actuators with teeth that block the beam in the default condition and open to permit the beam to pass through when energized. Shutters are ultra-high vacuum compatible and options such as tungsten teeth can be incorporated. For dynamic applications, a K-type thermocouple is typically incorporated so that temperature can be monitored to prevent overheating.


<table><tbody><tr><td>Nominal Open-loop Displacement per actuator (µm)</td><td></td></tr><tr><td>-30 to +150 V excitation</td><td>800</td></tr><tr><td>0 to +160 V excitation</td><td>630</td></tr><tr><td>Shutter Opening at -30 to +150 V (µm)</td><td>1675*</td></tr><tr><td>Shutter Opening at 0 to +160 V (µm)</td><td>1295*</td></tr><tr><td>Typical Operating Voltage (V)</td><td>0 to +160</td></tr><tr><td>First Translational Natural Frequency (Hz)</td><td>300</td></tr><tr><td>Minimum Recommended Rise/Fall Time (ms)</td><td>5.7</td></tr><tr><td>Capacitance (µF)</td><td>1.7</td></tr><tr><td>Material</td><td>Stainless Steel</td></tr><tr><td>Mass (g)</td><td>230</td></tr><tr><td>Outline dimensions (mm)</td><td>52.5 x 44 x 22.25</td></tr></tbody></table>

* Shutter opening specifications include a 75µm overlap at zero volts


  • Flexure-guided for smooth, parallel motion
  • UHV compatible
  • High natural frequencies and rapid response
  • Customizable and scalable for new applications


  • Shutter / Beam Stop
  • Optical Setups
  • Free Electron Laser (FEL) Beam Stop
